FMA780F

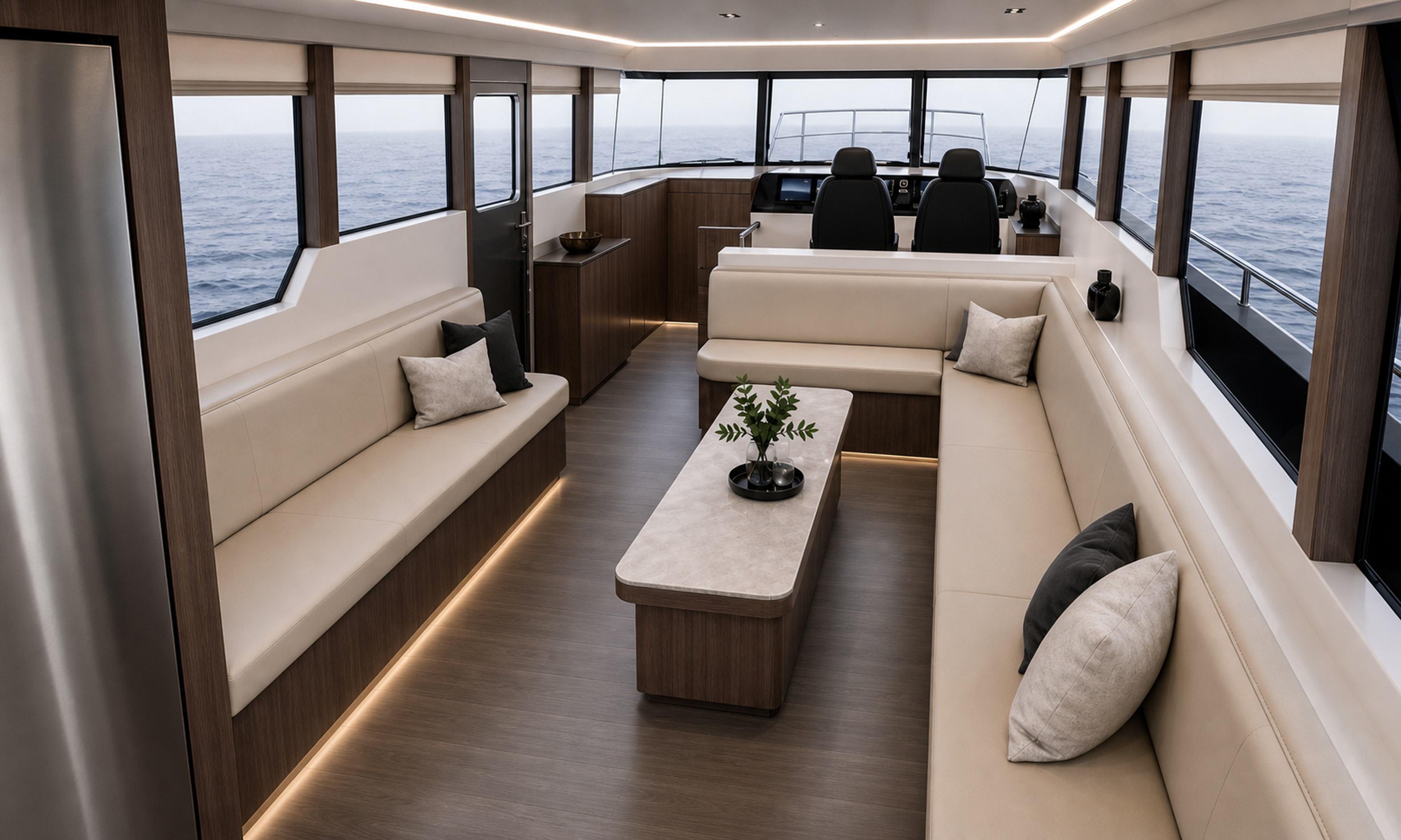

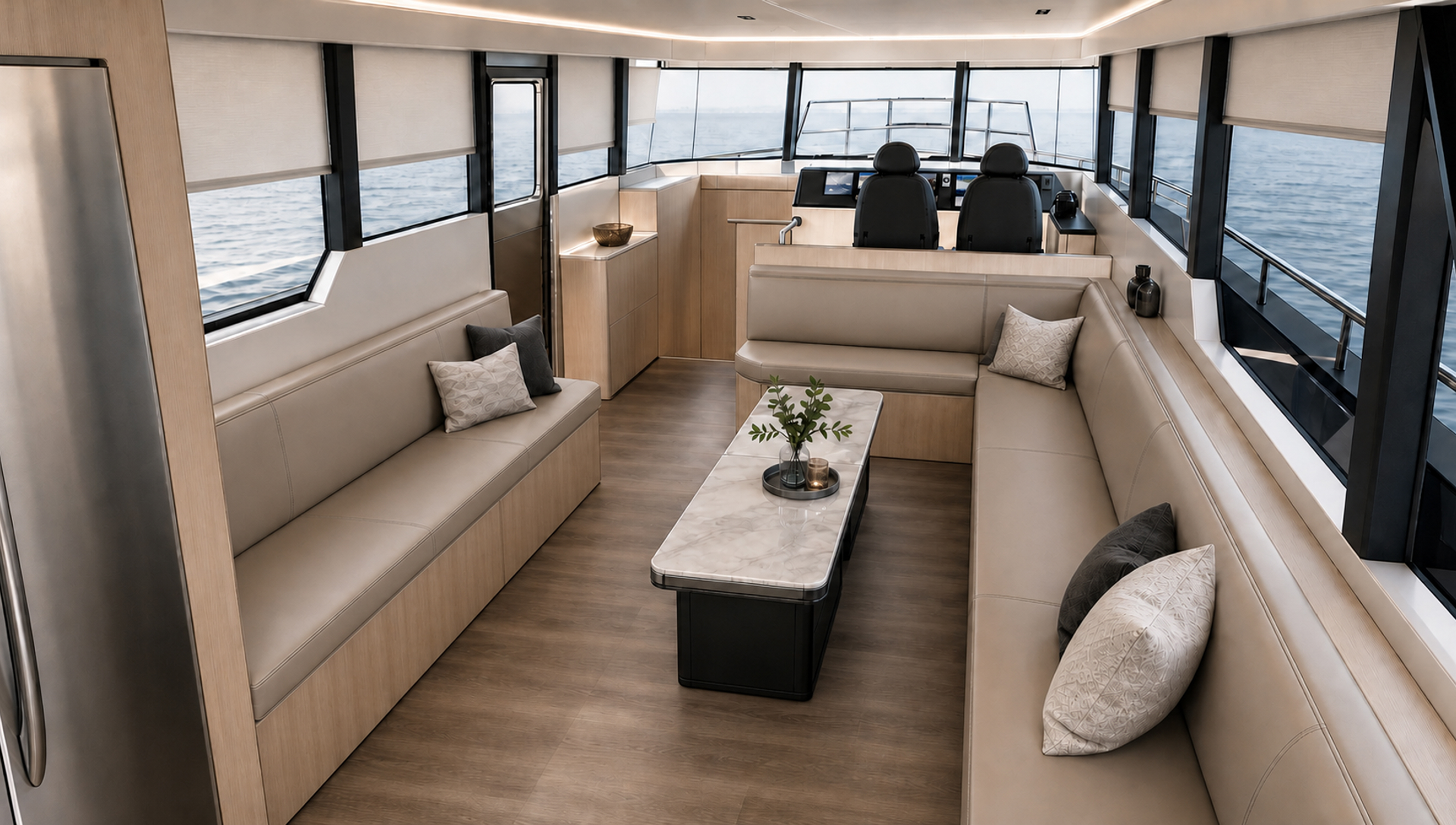

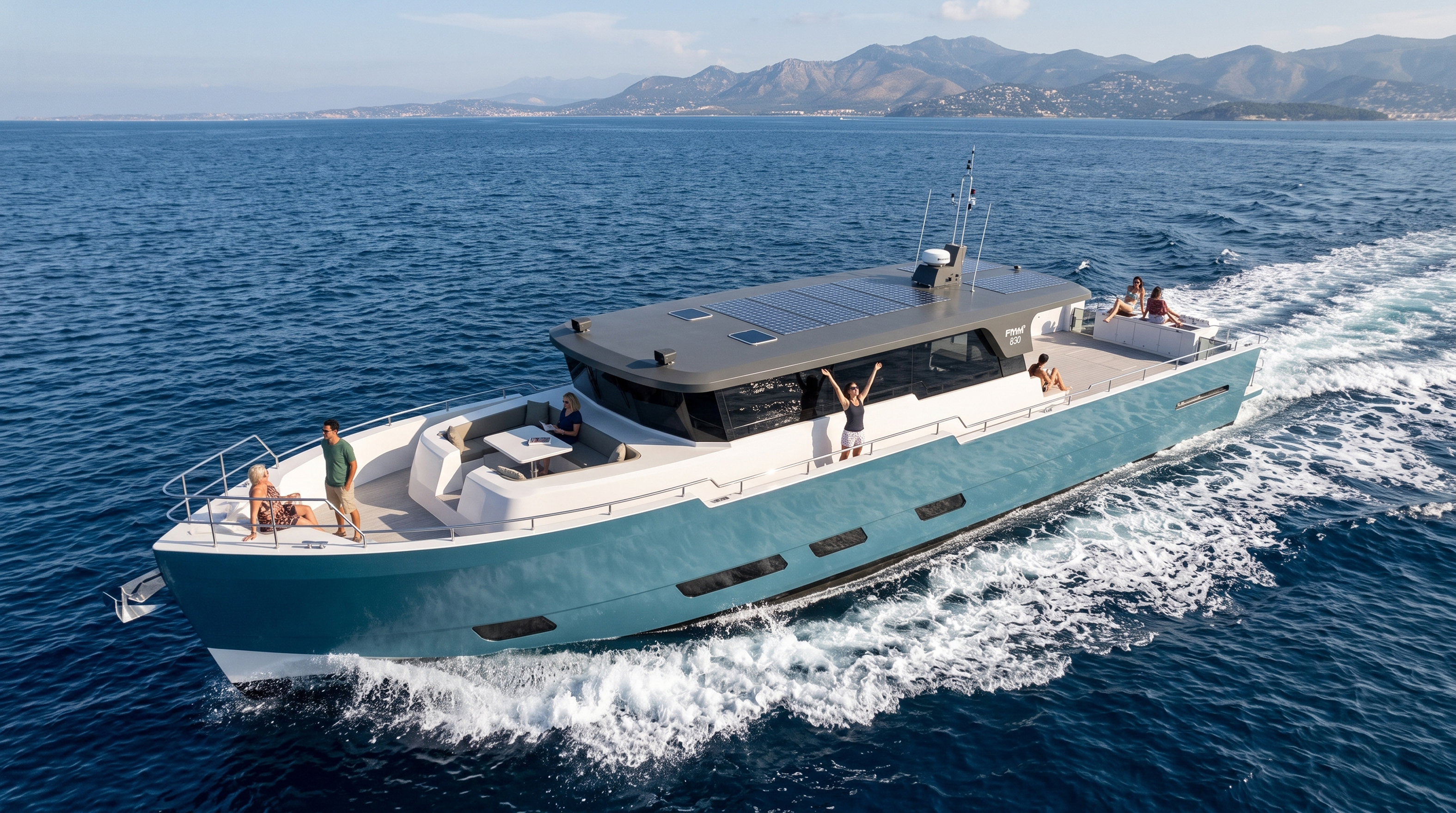

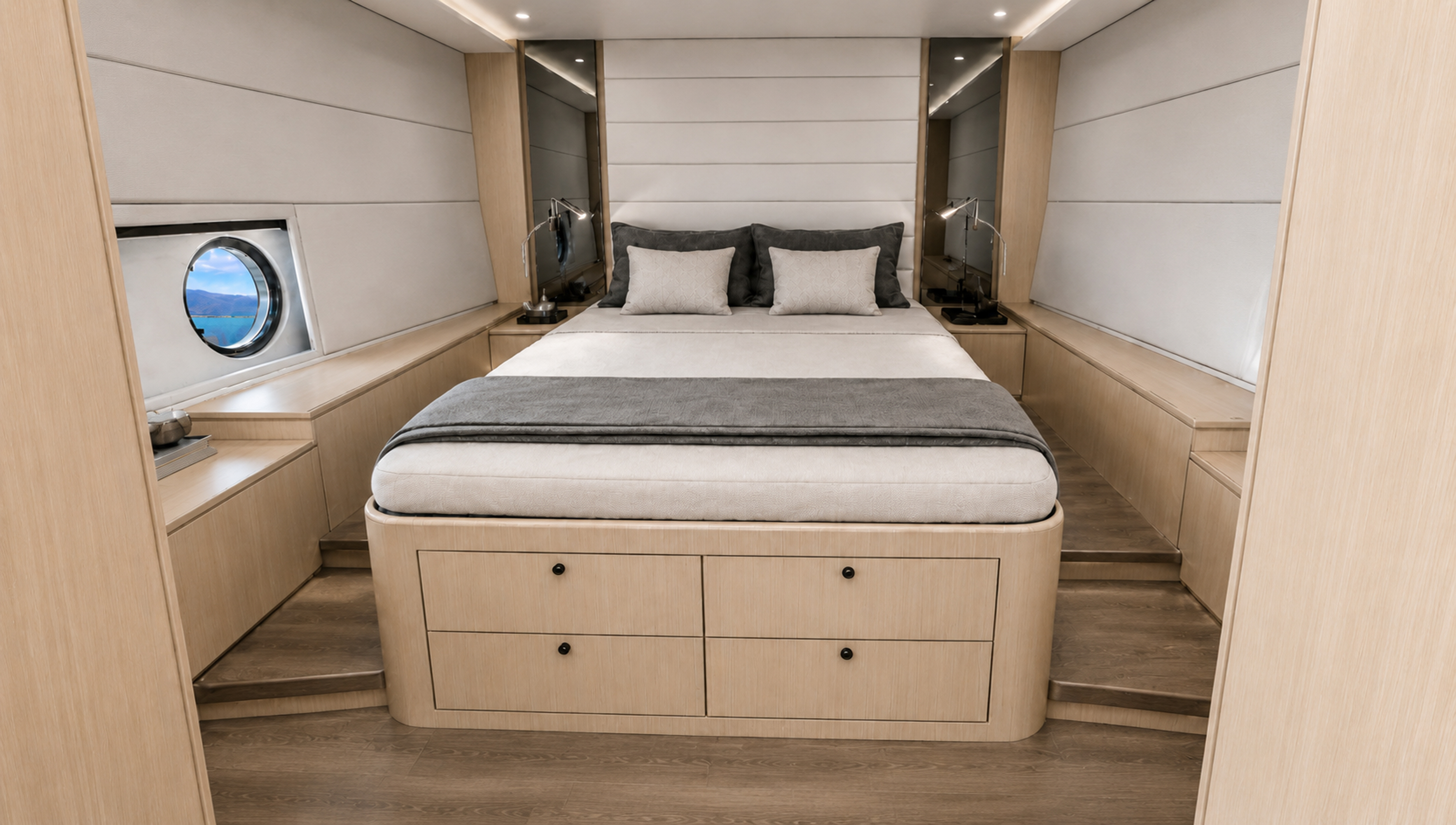

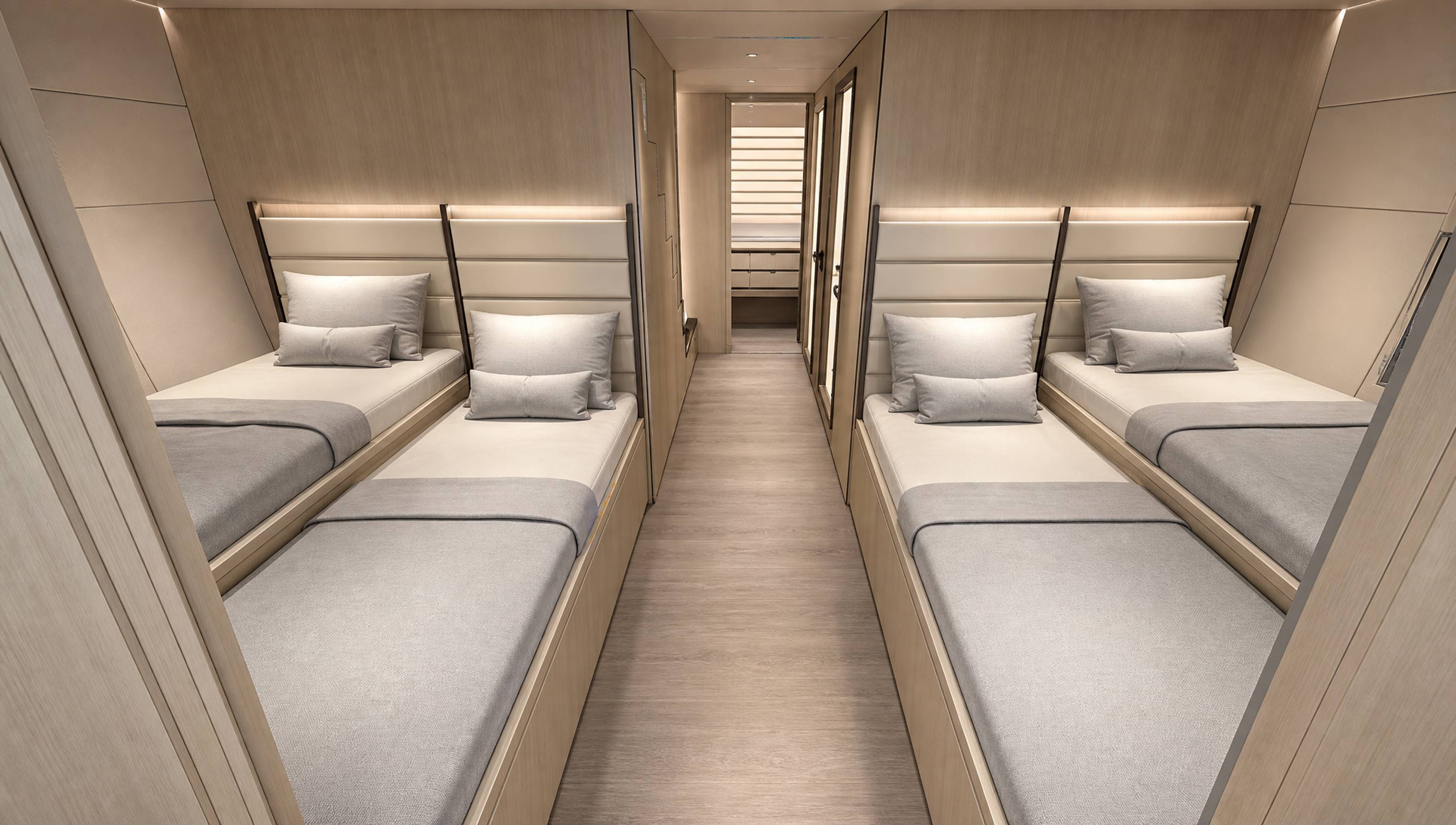

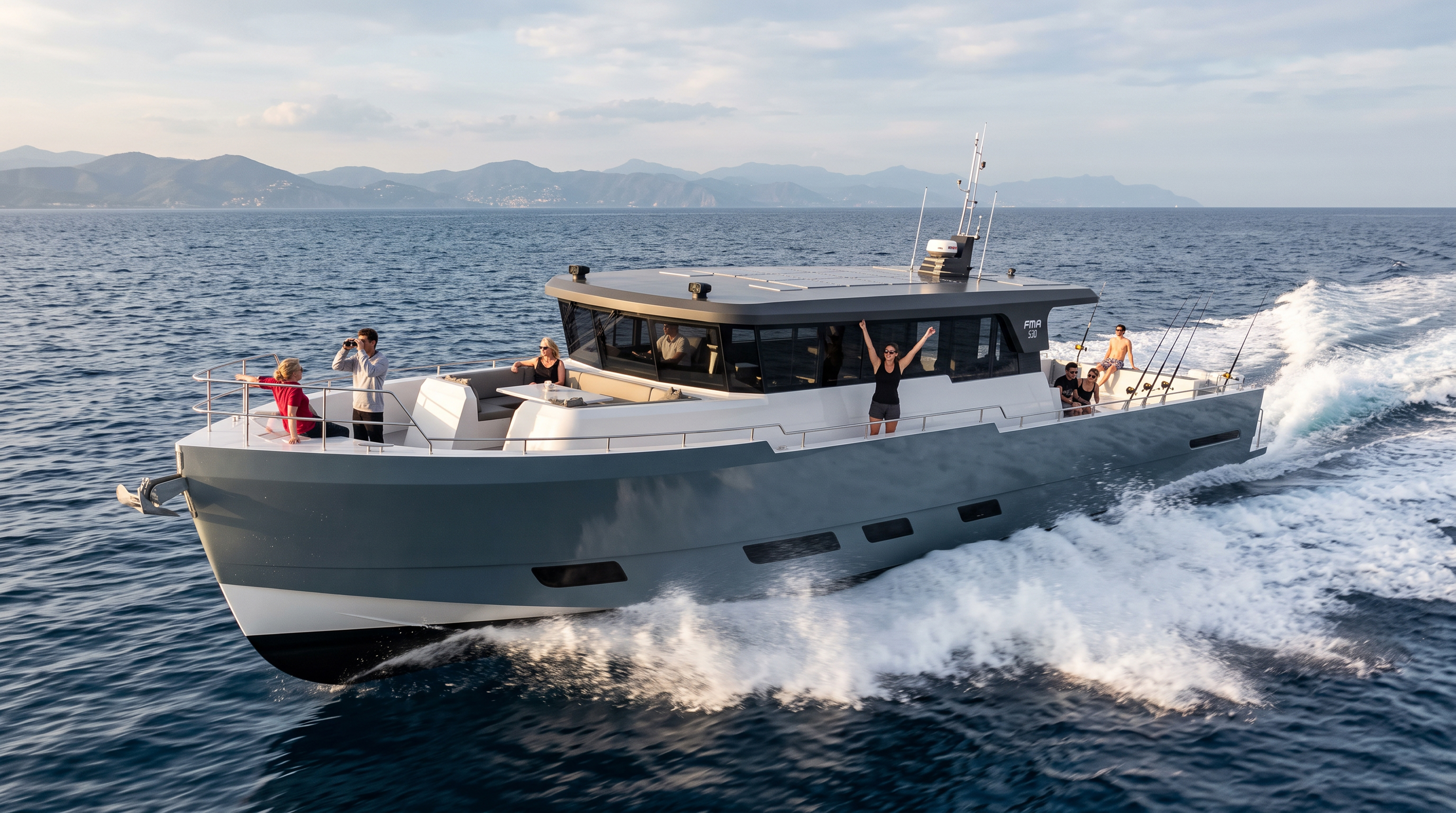

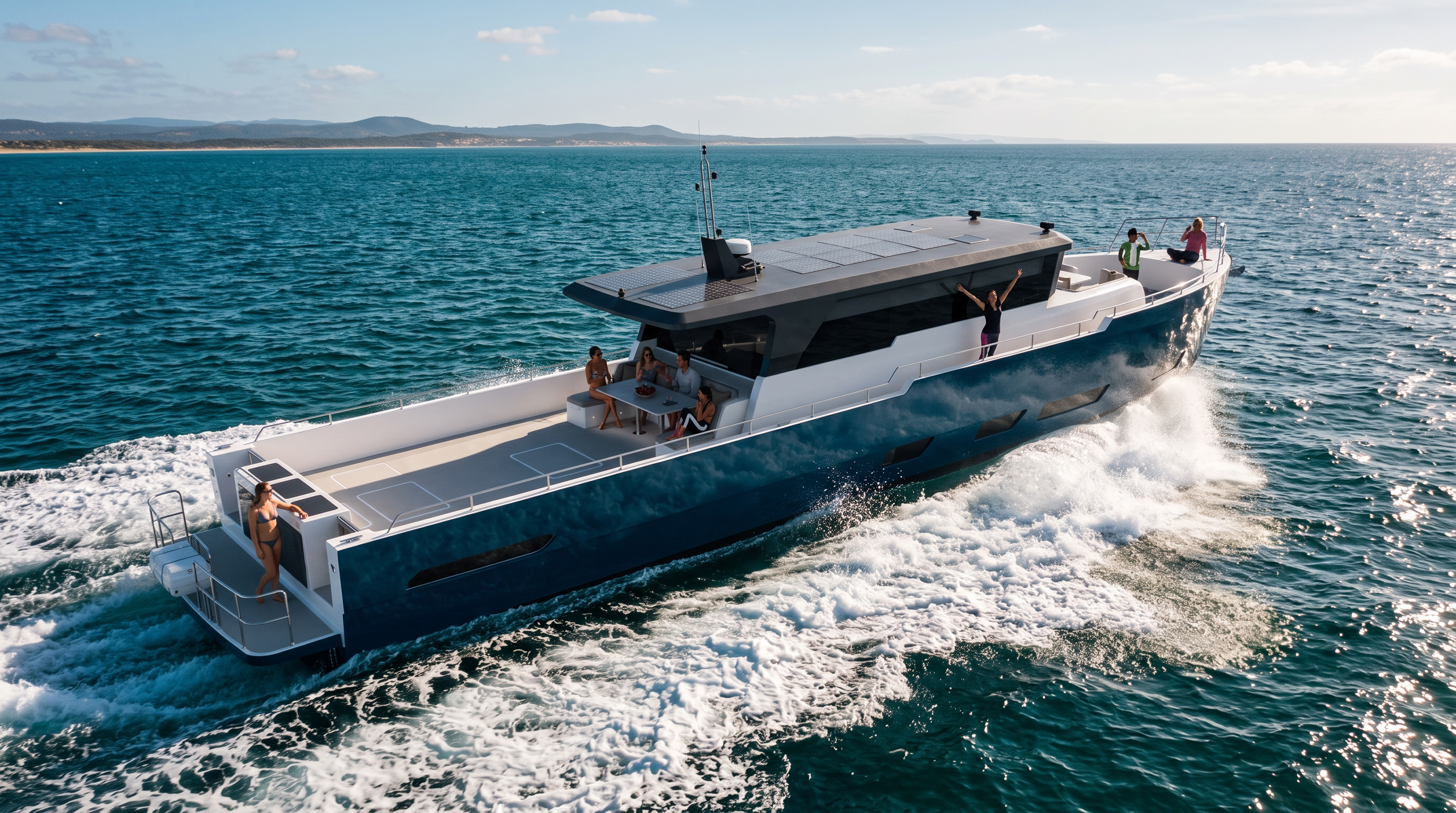

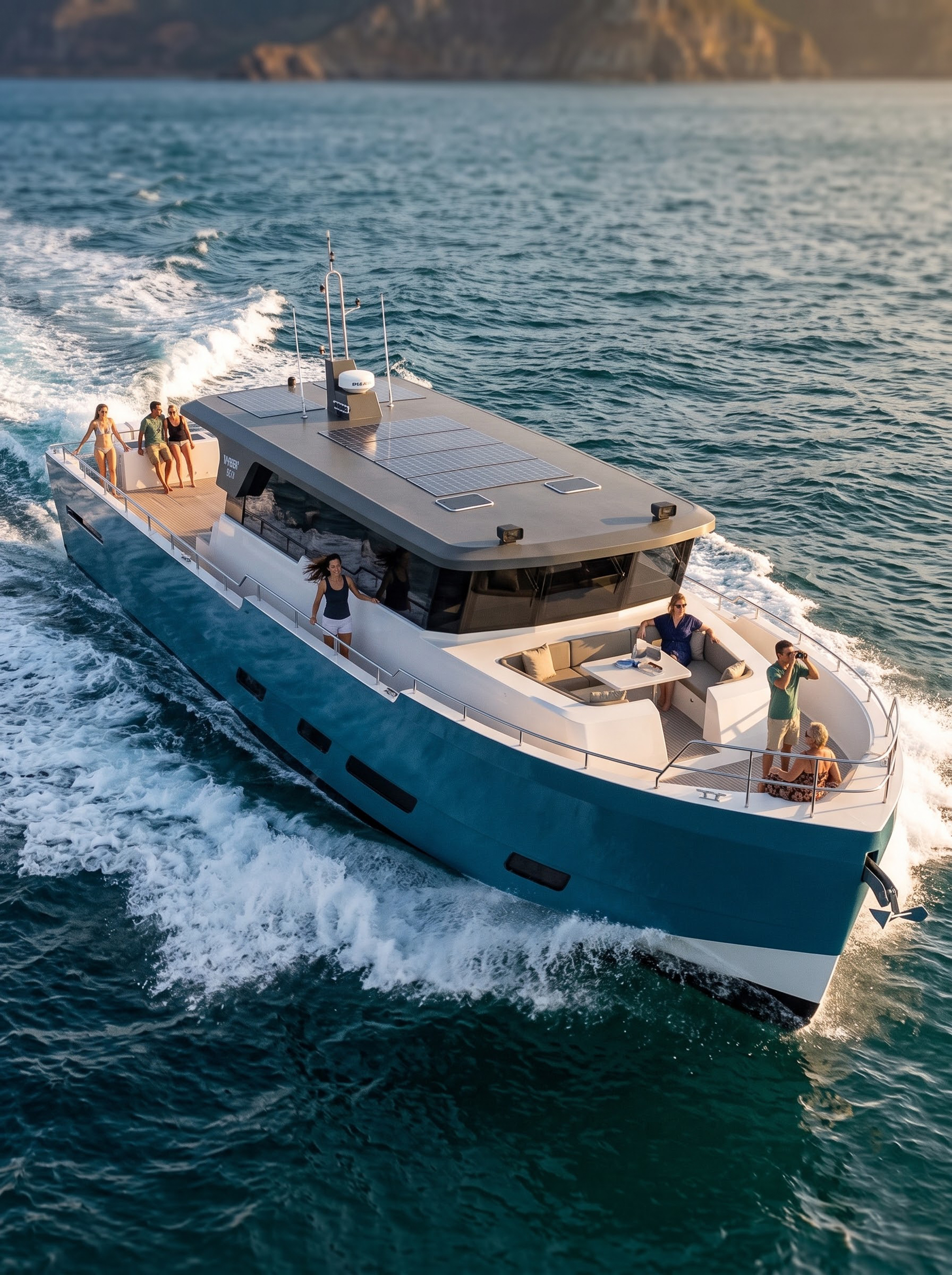

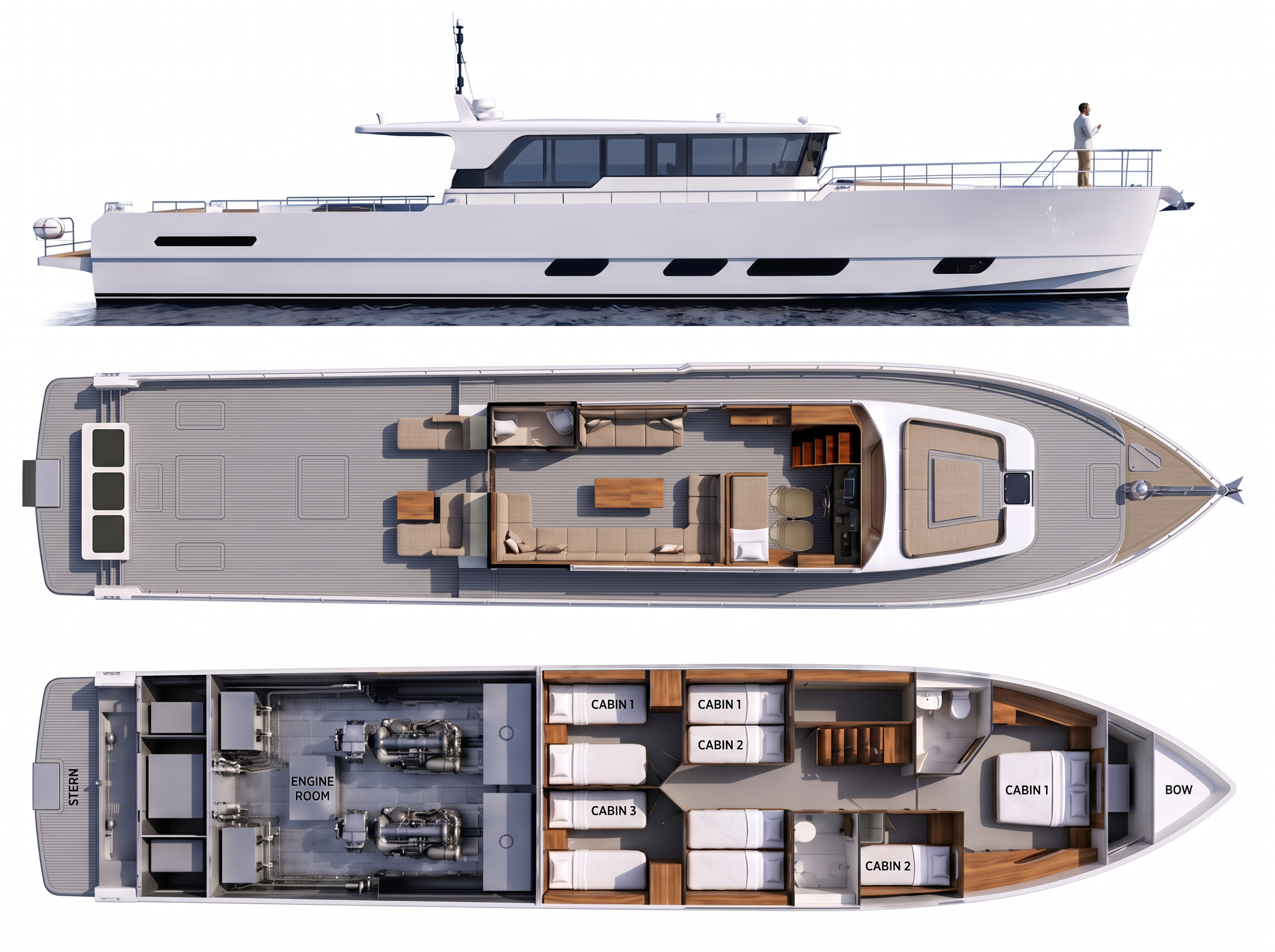

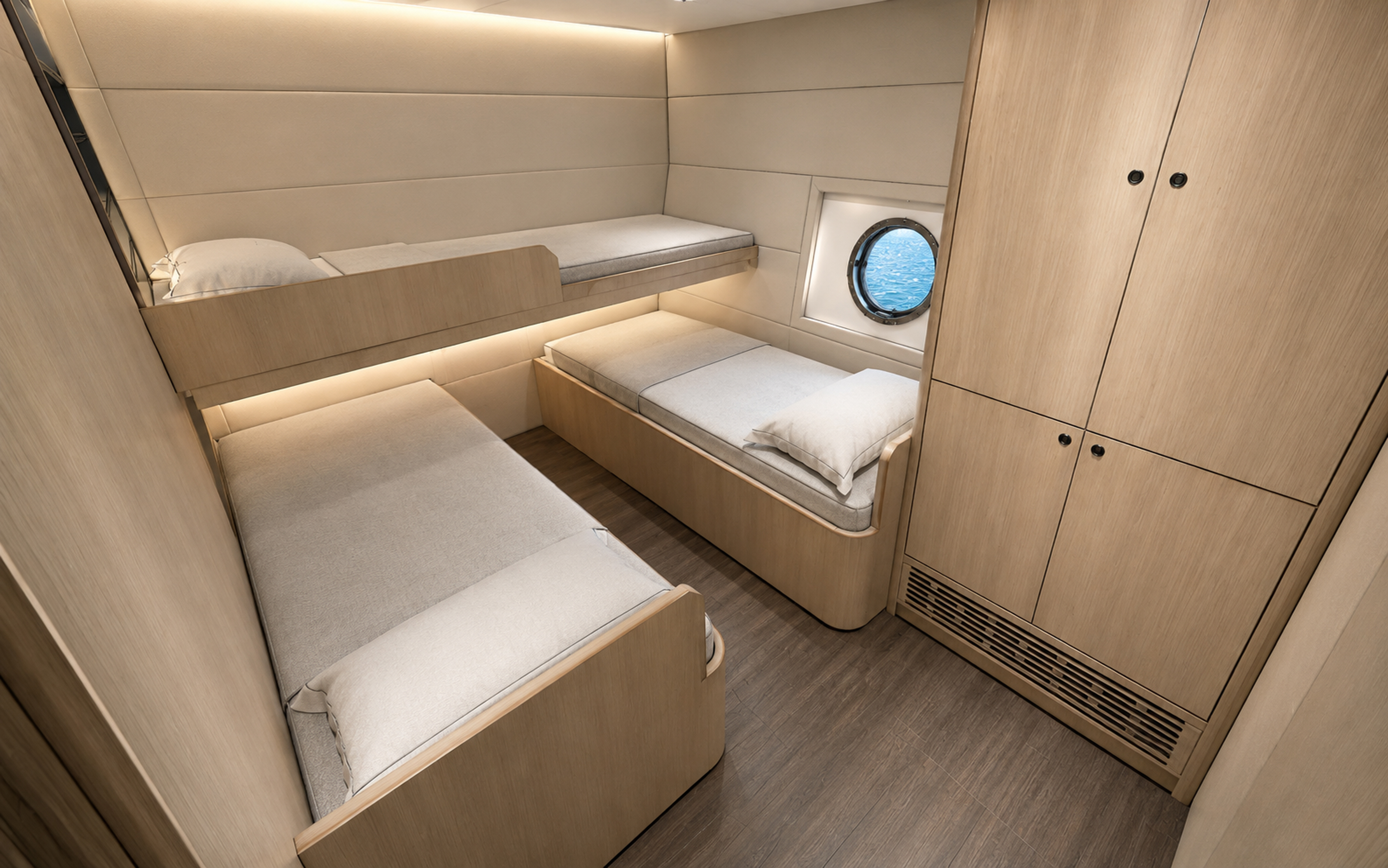

The FMA780F is a CCS Class II offshore sport fishing yacht featuring an overall length of 25.2 meters (hull length 23.8 meters), a beam of 5 meters, and a molded depth of 2.48 meters. It is powered by twin Weichai 900 engines and carries 7,000 liters of fuel and 1,200 liters of fresh water. The vessel boasts a fully equipped, spacious saloon and features sofas and dining tables on both the foredeck and aft deck. Accommodation includes 12 single berths, a watch-keeping berth at the helm, one cabin with bunk beds, two cabins with three single beds each, and a double-berth suite with a private bathroom. Additional specifications include fish holds with a total capacity of approximately 5,000 liters, two generators (20 kW and 13 kW), a top speed of around 27 knots (with an economical cruising speed of approximately 17 knots), and a minimum range of 500 nautical miles. Navigation and safety equipment comprises radar, depth sounder, fish finder, chart plotter, GPS, collision avoidance system, VHF and MF/HF radios, EPIRB, radar transponder, solar charging system, electric fishing winches, and a 12-person life raft.

LOA (incl. swim platform)
25.20m 82.68ft
Hull Length
23.80m 78.00ft
Waterline Length
23.08m 75.72ft
Beam
5.00m 16.40ft
Molded Depth
2.48m 8.13ft
Draft
0.95m 3.11ft
Displacement
42.0t 92,595 lb
Engines
2 × Weichai 900hp
Speed ​​(approx.)
49 km/h 27 knots
Navigation Area
Class II Navigation Area
